Transforming Legacy CAFM to Web-Based CAFM with APS for faciliCAD

faciliCAD, a trusted name in space and asset management, needed to modernize its legacy system to keep pace with evolving market demands. Originally built on Microsoft Access and deployed as a desktop solution, the platform was becoming increasingly difficult to scale, update, and sell.


Partnering with nCircle Tech, faciliCAD underwent a full digital transformation - resulting in a robust, scalable, and secure web-based CAFM (Computer-Aided Facility Management) platform.


This project showcases how nCircle Tech helped faciliCAD accelerate growth, simplify onboarding, and re-establish product competitiveness by leveraging deep expertise in AutoCAD plugin development, legacy application modernization, and facility management platform engineering.


Client Profile: faciliCAD by Spatial Innovations


faciliCAD, now developed by Spatial Innovations, is widely used for:

  • Space and vacancy management
  • Emergency-use asset inspections
  • Rent and revenue reporting
  • Drawing-based asset visualization


As facility data and compliance requirements grew more complex, faciliCAD’s leadership realized they needed a web-enabled, modern CAFM platform to:

  • Improve user experience across mobile, desktop, and iPad
  • Integrate tightly with AutoCAD drawings
  • Streamline inspections, reporting, and decision-making
  • Support high-security, on-premises deployments


The Challenge: Outdated Legacy Architecture Limiting Growth


Though rich in features, faciliCAD’s legacy system—built on VB.NET and Microsoft Access—was increasingly difficult to maintain, sell, or expand:

  • Long onboarding cycles and in-person training were slowing sales
  • Limited scalability was preventing adoption by large enterprises
  • Integration constraints blocked modern workflows like real-time visualization or cloud collaboration
  • Decreasing market share: faciliCAD risked losing its foothold in the competitive CAFM space


The Solution: A Modern, Secure, AutoCAD-Connected Web Platform

nCircle Tech delivered a fully modernized CAFM solution with:



Web-Based Architecture with Real-Time AutoCAD Integration
  • Built using Vue.js and Node.js with backend support in .NET
  • On-premise deployment for high-security clients
  • C#-based AutoCAD plugin supporting 2019–2025 versions (including .NET Core 8 support)

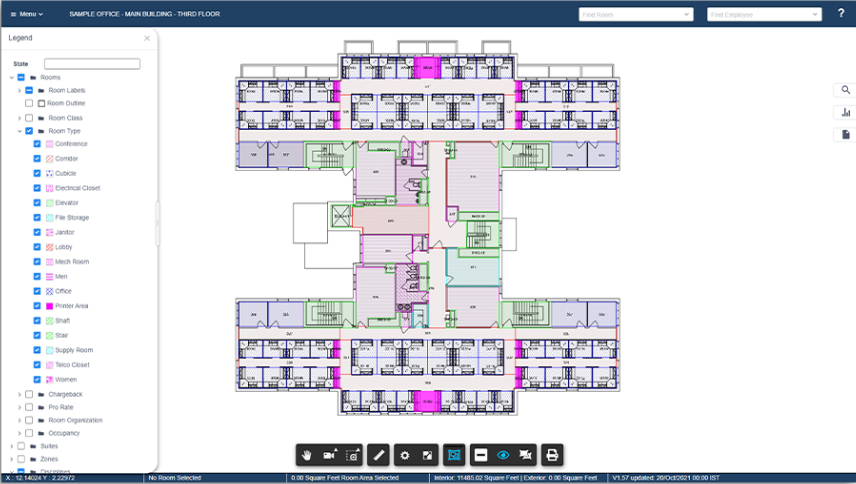

Interactive Drawing Viewer with Facility Metadata

  • Visual representation of rooms, zones, assets, and employees
  • Real-time updates synced between the database and drawings



Asset Inspection Manager with Barcode Scanning

  • Supports inspectable/non-inspectable assets
  • Visual indicators for inspection status, due dates, and location on floorplans

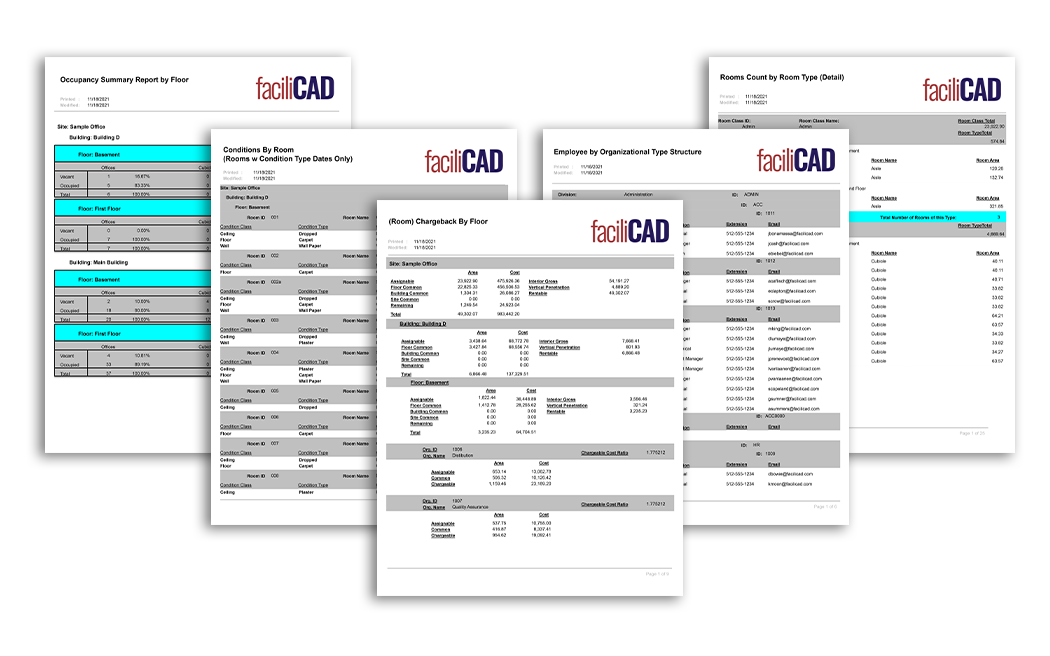

Crystal Reports & Custom Dashboards

  • Occupancy, chargeback, and asset condition reports
  • Templates that provide leadership with insights into cost savings and facility utilization

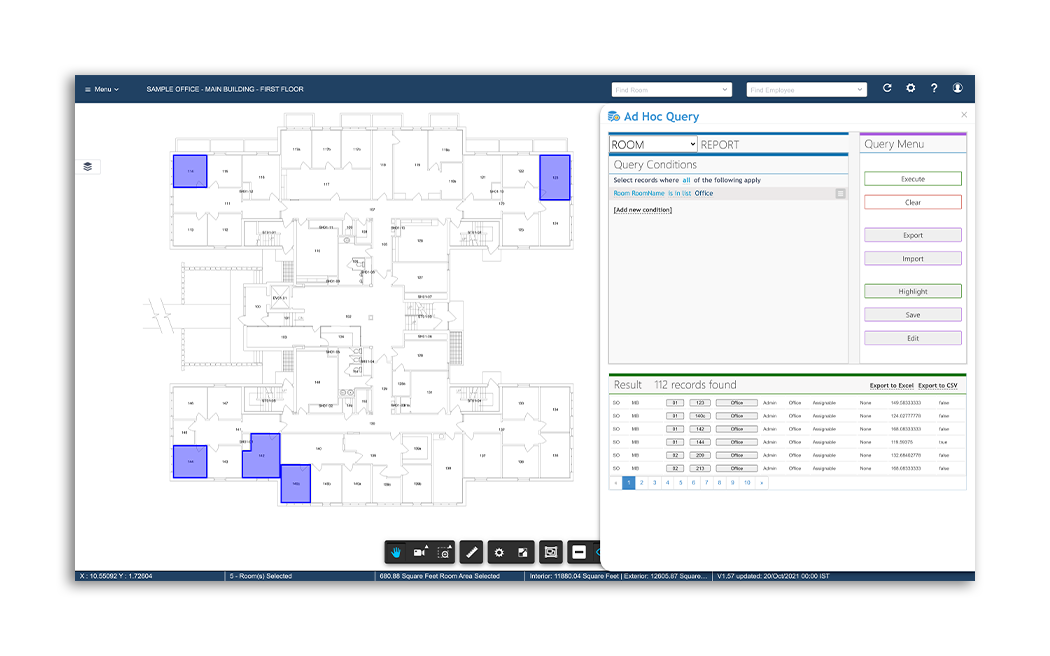

Ad-Hoc Query Engine with Visual Filtering

  • Quick filtering by employee, department, asset, or condition
  • Results are shown directly on the interactive drawing viewer


Security & Scalability Built In

  • On-premise deployment with full data control
  • Regular penetration testing and proactive vulnerability resolution
  • Supports distributed teams and large portfolios (universities, hospitals, corporations, government)


Results That Speak Volumes

70% Faster Sales & Onboarding Cycle

  • Reduced client onboarding time from 3–5 days to under 6 hours
  • Cut training and support costs by up to 60% with an intuitive, web-based UI
  • Enabled remote deployment - accelerating time-to-value and shortening sales cycles


3x Market Expansion Potential

  • Opened doors to enterprise clients across healthcare, education, and government sectors
  • Delivered a responsive, cross-device experience - boosting adoption across mobile, desktop, and iPad
  • Positioned faciliCAD as a modern alternative to cloud-native CAFM platforms


6-Figure Cost Savings on Modernization

  • Focused 90% of the budget on actual development vs. prolonged discovery
  • Achieved full modernization without sacrificing legacy workflows or data integrity


Seamless AutoCAD Continuity + Future-Ready Architecture

  • Maintained full AutoCAD integration (versions 2019–2025)
  • Introduced real-time drawing sync and a scalable backend for growing FM teams
  • Future-proofed with .NET Core 8 and on-premise security for high-sensitivity environments



Why Clients Like faciliCAD Choose nCircle Tech


Whether you're a facility software vendor, architecture firm, or real estate operations team - if you're managing facility data, AutoCAD drawings, or asset inspection workflows, nCircle Tech can help:


  • Modernize legacy software (VB.NET, MS Access, WinForms) into desktop, web, or mobile apps
  • Build or integrate AutoCAD plugins with APS/Forge Viewer and metadata workflows
  • Develop secure, scalable, on-premise solutions for high-sensitivity environments
  • Improve FM productivity through automation, visualization, and dynamic reporting


Conclusion: From Legacy Boundaries to Future-Ready Facility Management


Through its partnership with nCircle Tech, faciliCAD was able to modernize the legacy technology product. The new web-based CAFM platform helped to regain market share, get new investments, and continue the business. faciliCAD was able to have a long, reliable partner all without requiring deep CAD or IT expertise. Unlike freelancers, the nCircle team has always been available to address any issues. nCircle handled the transitions, and for many past years, faciliCAD has not faced any hiccups with development.


faciliCAD’s transformation is proof that legacy systems don’t have to hold businesses back. With the right partner, even the most complex platforms can evolve into modern solutions that drive growth, efficiency, and competitive advantage.
